M5Stack BUS Module
M5Stack BUS Module allows custom circuit design to universal prototype per board to interact with M5Core via M-BUS. This module connects with other layers through M-BUS and features a M_BUS. The BUS module includes a 2*15 90degrees pin set in the package.
Features
- 1mm (0.039") CNC drilled hole size
- 2.54mm hole pitch
- 200 holes
Kit Contents
- 1x BUS module

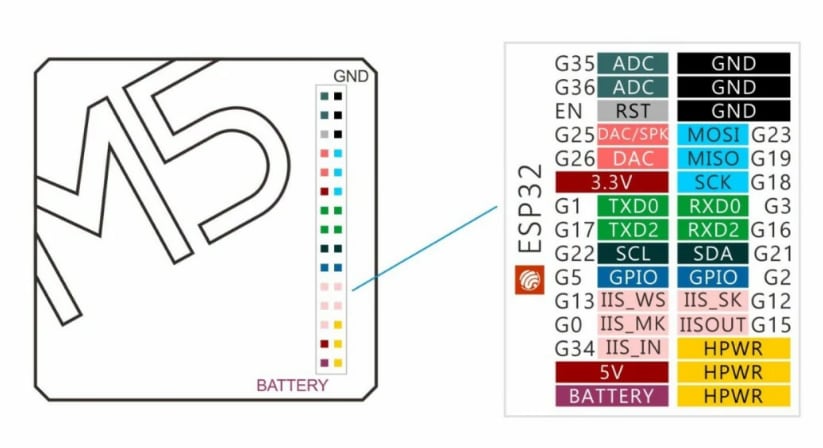

MBUS Pin Map
