Microchip Technology DSC61x MEMS Clock Generators

Microchip Technology DSC61x MEMS Clock Generators are a low-power, ultra-small footprint, and crystal-less family of generators. The clock generators are factory configurable and are available in DSC610, DSC612, and DSC613 variants. These DSC612 devices generate up to two independent LVCMOS outputs, and DSC613 MEMS generate up to three LVCMOS outputs from two PLLs. Each output can be configured to generate any frequency from 2kHz to 100MHz. These clock generators implement PureSilicon™ MEMS technology to provide low jitter and high stability across a wide range of supply voltages and temperatures.

The DSC61x clock generators significantly enhance reliability and accelerate product development by eliminating the external quartz crystal. These clock generators are available in 1.6mm x 1.2mm, 2mm x 1.6mm, and 2.5mm x 2mm VFLGA plastic packages.

Features

  • MEMS-based clock generator eliminates the need for external crystal or reference clock
  • 1.71V to 3.63V wide supply voltage range
  • Ultra-small package sizes
    • 1.6mm x 1.2mm
    • 2mm x 1.6mm
    • 2.5mm x 2mm
  • ±20ppm, ±25ppm, and ±50ppm high-frequency stability
  • DSC612
    • Two 2kHz to 100MHz two LVCMOS output clocks
    • 5mA low power consumption
  • DSC613
    • Three 2kHz to 100MHz three LVCMOS output clocks
    • 5.2mA low power consumption
  • Wide temperature range
    • Automotive -40°C to 125°C
    • External industrial -40°C to 105°C
    • Industrial -40°C to 85°C
    • Commercial -20°C to 70°C
  • Excellent shock and vibration immunity
    • Qualified to MIL-STD-883
  • High reliability
  • Lead-free and RoHS-compliant
  • Automotive option AEC-Q100 available

Applications

  • Low-power/portable
    • IoT
    • Embedded/Smart devices
  • Consumer
    • Home healthcare
    • Fitness devices
    • Home automation
  • Industrial
    • Building/Factory automation
    • Surveillance cameras

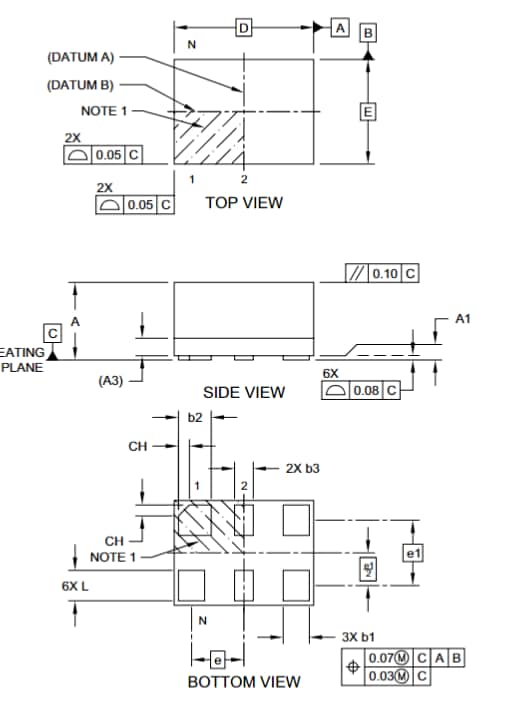

DSC61x Dimensions

Mechanical Drawing - Microchip Technology DSC61x MEMS Clock Generators

Related product

Microchip Technology DSC557 2-Output MEMS Clock Generator

A crystal-less, PCI express clock generator meeting Gen1, Gen2, Gen3, and Gen4 specifications.

Learn Moreom Microchip Technology DSC557 2-Output MEMS Clock Generator View Productsrelaterat till Microchip Technology DSC557 2-Output MEMS Clock Generator
View Results ( 8 ) Page
Artikelnummer Datablad Beskrivning Serie
DSC613RI2A-012ST DSC613RI2A-012ST Datablad Clock Generators & Support Products 3-Output MEMS Clock Gen, 12M, 25M, 0.032768M, -40C-85C, 25ppm, 2.5x2.0mm DSC613
DSC613PI3A-0105 DSC613PI3A-0105 Datablad Clock Generators & Support Products 3-output MEMS clock generator, 1.6x1.2mm, 6-pin, 20ppm, -40 to 85C DSC613
DSC612PI2A-012Q DSC612PI2A-012Q Datablad Clock Generators & Support Products 2-Output MEMS Clock Gen, 24M, 25M, -40C-85C, 25ppm, 1.6x1.2mm DSC612
DSC612RI1A-012M DSC612RI1A-012M Datablad Clock Generators & Support Products 2-Output MEMS Clock Gen, 25 , 50 , -40C-85C, 50ppm, 2.5x2.0mm DSC612
DSC613PL3A-0106 DSC613PL3A-0106 Datablad Clock Generators & Support Products 3-output MEMS clock generator, 1.6x1.2mm, 6-pin, 20ppm, -40 to 105C DSC613
DSC613RA2A-0106 DSC613RA2A-0106 Datablad Clock Generators & Support Products 3-output MEMS clock generator, 2.5x2.0mm, 6-pin, 25ppm, -40 to 125C DSC613
DSC613RI2A-012S DSC613RI2A-012S Datablad Clock Generators & Support Products 3-Output MEMS Clock Gen, 12M, 25M, 0.032768M, -40C-85C, 25ppm, 2.5x2.0mm DSC613
DSC613RI3A-010U DSC613RI3A-010U Datablad Clock Generators & Support Products 3-output MEMS clock generator, 2.5x2.0mm, 6-pin, 20ppm, -40 to 85C DSC613
