Murata Power Solutions MTU1 DC-DC Converters
Murata Power Solutions MTU1 DC-DC Converters are a new range of miniature surface mount, high-performance 1W isolated DC-DC converters. Murata Power Solutions' MTU1 DC-DC Converters offer single isolated output, typical efficiency up to 88%, a footprint reduction of over 50% from the previous generation of 1W SMD DC-DC, and 1W of available output power over the full industrial temperature range of -40ºC to +85ºC.
The MTU1 offers greater efficiency and improved regulation performance for applications where a wide output voltage variation can not be tolerated. Other MTU1 Series features and benefits include 1kVDC isolation, UL 94V-0 package material, 5V, and 12V input, toroidal magnetics, multi-layer ceramic capacitors, and 5V, 9V, 12V, and 15V output. Murata Power Solutions MTU1 DC-DC Converter series has been expanded. Now included in the single output offering is a 5V Single Output model. In addition, a selection of dual output models is available.
Features
- Patent pending design
- Footprint over pins 0.69cm²
- 1kVDC isolation
- Efficiency up to 88% (Typical)
- Power density 1.71W/cm³
- Wide temperature performance at full 1W load, -40ºC to +85ºC
- UL 94V-0 package material
- 5V and 12V input
- 5V, 9V, 12V, and 15V output
- Toroidal magnetics
- Custom solutions available
- Multi-layer ceramic capacitors
Applications
- Industrial
- Test and measurement
- Process control applications
- Application segments where an isolated surface mount DC/DC is needed

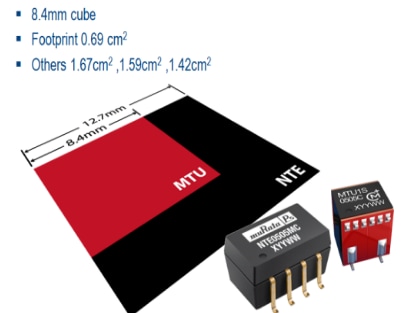

Half the Industry Standard Footprint

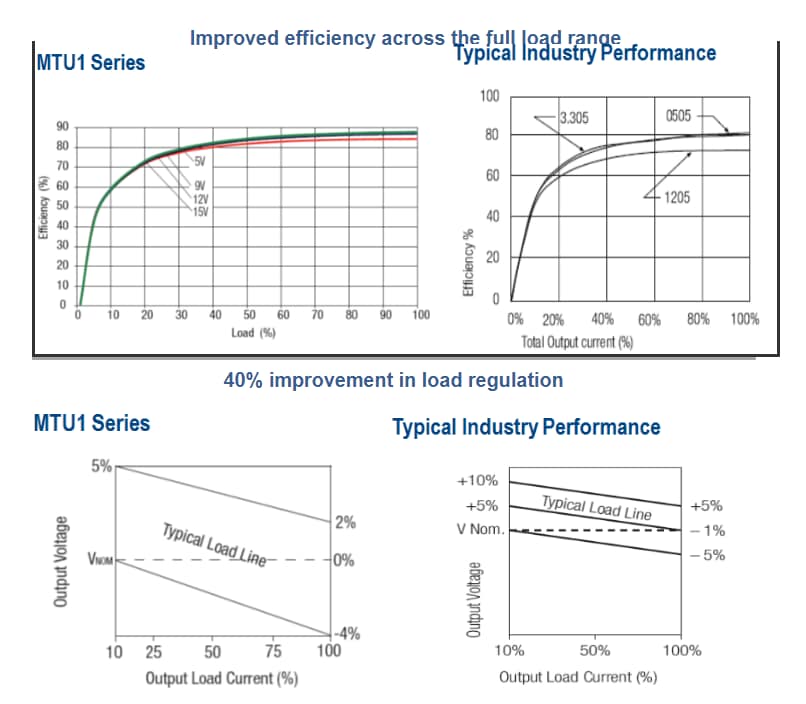

Improved Efficiency Across The Full load Range & Load Regulation
