Nisshinbo NJM12884-H Low-dropout (LDO) Voltage Regulator IC
Nisshinbo NJM12884-H Low-dropout (LDO) Voltage Regulator IC includes an adjustable soft-start function for reducing inrush current and controlling the power-on sequence. The discharge function makes effective sequence control with the soft-start function, and the reverse current protection eliminates the need for external SBD. This voltage regulator IC achieves high ripple rejection, low noise, and high-speed response with bipolar technology.
The NJM12884-H LDO voltage regulator IC features a discharge function, ON/OFF control, thermal shutdown circuit, and over-current protection circuit. This voltage regulator IC also features a 500mA output current, 2.3V to 6.5V operating voltage range, and -40°C to 125°C operating temperature range. The NJM12884-H LDO voltage regulator IC is AEC-Q100 grade 1 qualified and is housed in a DFN8-WA (ESON8-WA) package (automotive). Typical applications include automotive infotainment, automotive ECU units, and industrial equipment.
Features
- AEC-Q100 grade 1 qualified
- Reverse current protection
- Adjustable soft-start function
- Discharge function
- ON/OFF control
- Correspond to low ESR capacitor (MLCC)
- Thermal shutdown circuit
- Over current protection circuit
- RoHS compliant
Specifications
- 500mA output current
- 1.5V, 1.8V, 2.5V, 3.3V, and 5V output voltage ranges
- Vo±2.0% output voltage accuracy
- 68dB typical ripple rejection
- 2.3V to 6.5V operating voltage range
- -40°C to 125°C operating temperature range
- Package:
- Automotive:
- DFN8-WA (ESON8-WA)
- Consumer:
- SOT-89-5-2
- TO-252-5-L3
- Automotive:
Applications
- Automotive infotainment
- Automotive ECU unit
- Industrial equipment

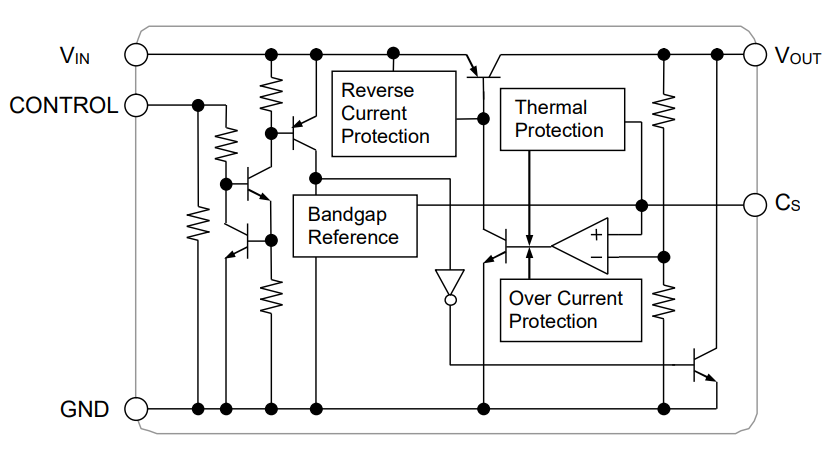

Block Diagram

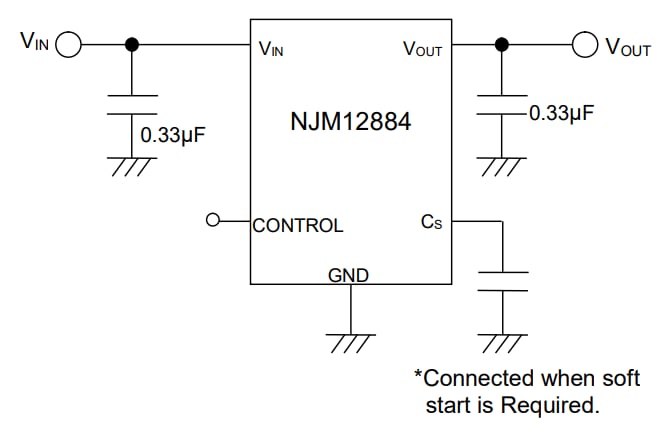

Typical Application
