Phoenix Contact PSR-MIS Magnetic Safety Switches

Phoenix Contact PSR-MIS Magnetic Safety Switches are non-contact safety switches that provide a cost-optimized safety solution. These switches are designed using the proven magnetic switching principle for monitoring of movable guards and are easy to install. The PSR-MIS magnetic switches offer simple diagnostics with an LED display directly on the sensor. These PSR-MIS switches are available in various designs for flexible mounting on doors and hatches.

Features

  • 3 designs
  • Safe series connection up to PL d
  • Proven magnetic switching principle for reliable condition monitoring
  • Simple diagnostics with an LED display directly on the sensor
  • Various designs for flexible mounting on doors and hatches

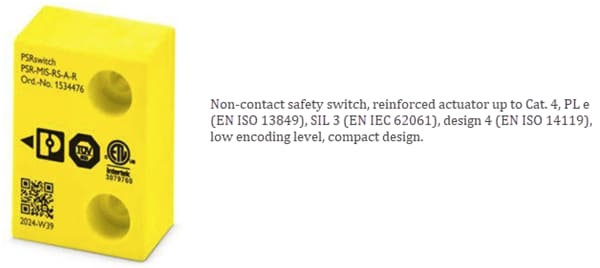

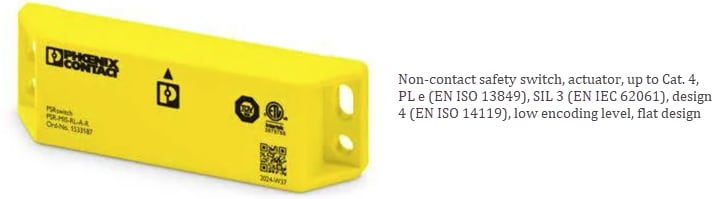

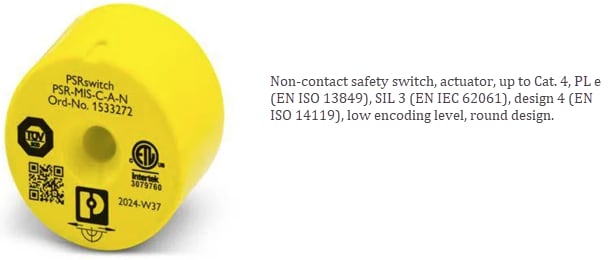

Safety Switch Actuators

Phoenix Contact PSR-MIS Magnetic Safety Switches
Phoenix Contact PSR-MIS Magnetic Safety Switches
Phoenix Contact PSR-MIS Magnetic Safety Switches

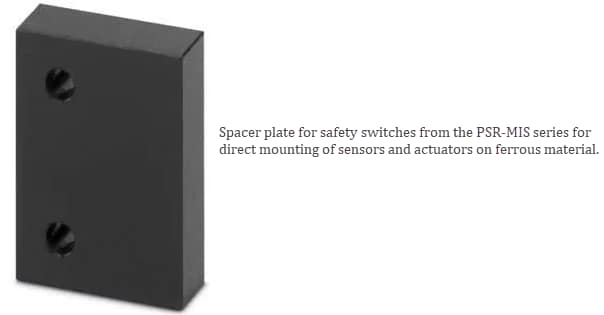

Spacer Plate

Phoenix Contact PSR-MIS Magnetic Safety Switches
View Results ( 26 ) Page
Artikelnummer Datablad Märkspänning AC Märkspänning DC Märkström Omkopplartyp Belyst Termineringsstil Minsta drifttemperatur Maximal drifttemperatur RoHS - Mouser
1533269 1533269 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Connector - 25 C + 75 C Y
1533278 1533278 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1534496 1534496 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1534519 1534519 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1533277 1533277 Datablad 50 VAC 28.8 VDC 100 mA SafetySwitch Non-Illuminated Cable - 25 C + 75 C Y
1533265 1533265 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1532481 1532481 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1533047 1533047 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
1533225 1533225 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Connector - 25 C + 75 C Y
1534480 1534480 Datablad 50 VAC 28.8 VDC 100 mA Safety Switch Non-Illuminated Cable - 25 C + 75 C Y
